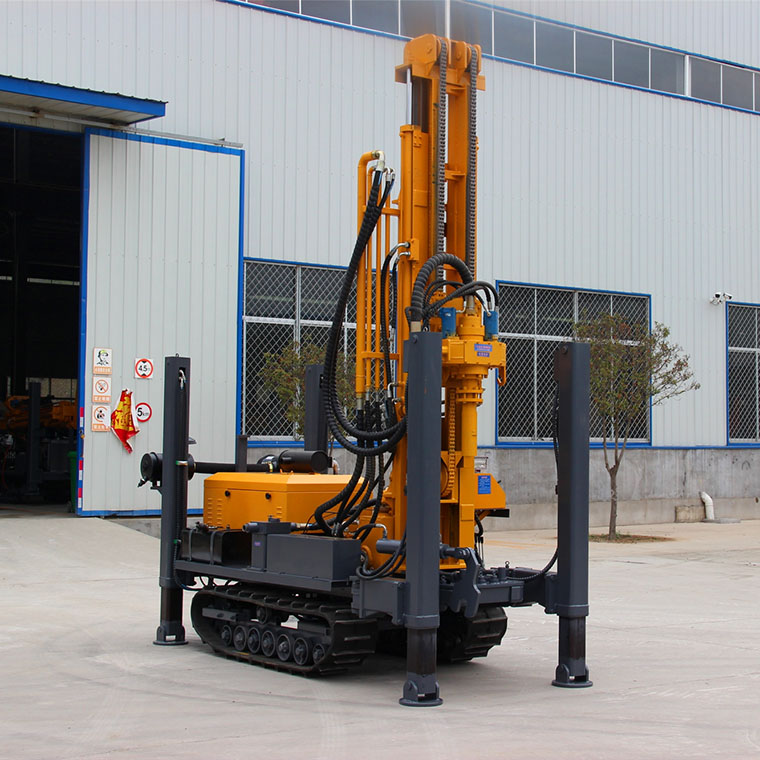

FYX180 Water Well Drilling Rig

FYX180 water well drilling rig Features: Water and gas dual-purpose crawler type 180 meters deep water drilling Features:

1. Equipped with 55KW Yuchai brand turbocharged engine with strong power;

2. Patented design compound boom, double cylinder lifting;

3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks, high flexibility, less damage to hard roads.

5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

6. The operating system is simple and easy to operate

7. Easy to load and unload on the truck

8. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

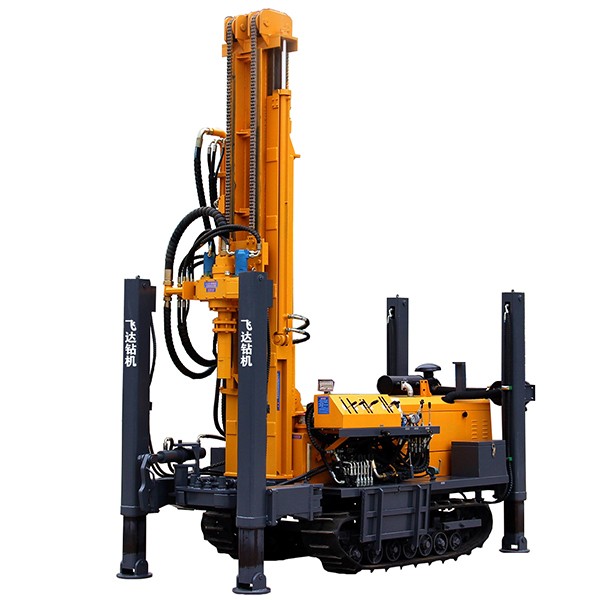

FYX 180 rubber crawler water well drilling rig
The weight（T）	4.5	Drill pipe diameter（mm）	Φ76  Φ89
The hole diameter（mm）	140-254	Drill pipe length（m）	1.5m  2.0m  3.0m
Drilling depth（m）	180	Rig lifting force（T）	12
One-time advance length（m）	3.3	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.4
Equipped capacitor（kw）	55	Hoisting force of winch（T）	--
Using air pressure（MPA）	1.7-2.5	Swing torque（N.m）	3200-4600
Air consumption（m3/min）	17-31	Dimension（mm）	3950×1630×2250
Swing speed（rpm）	45-70	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	10-35	High leg stroke（m）	1.4
The engine brand	Quanchai  engine
