            Home > DrillingEquipment&Matching > Underground electric scraper > WJD-0.6Underground electric scraper

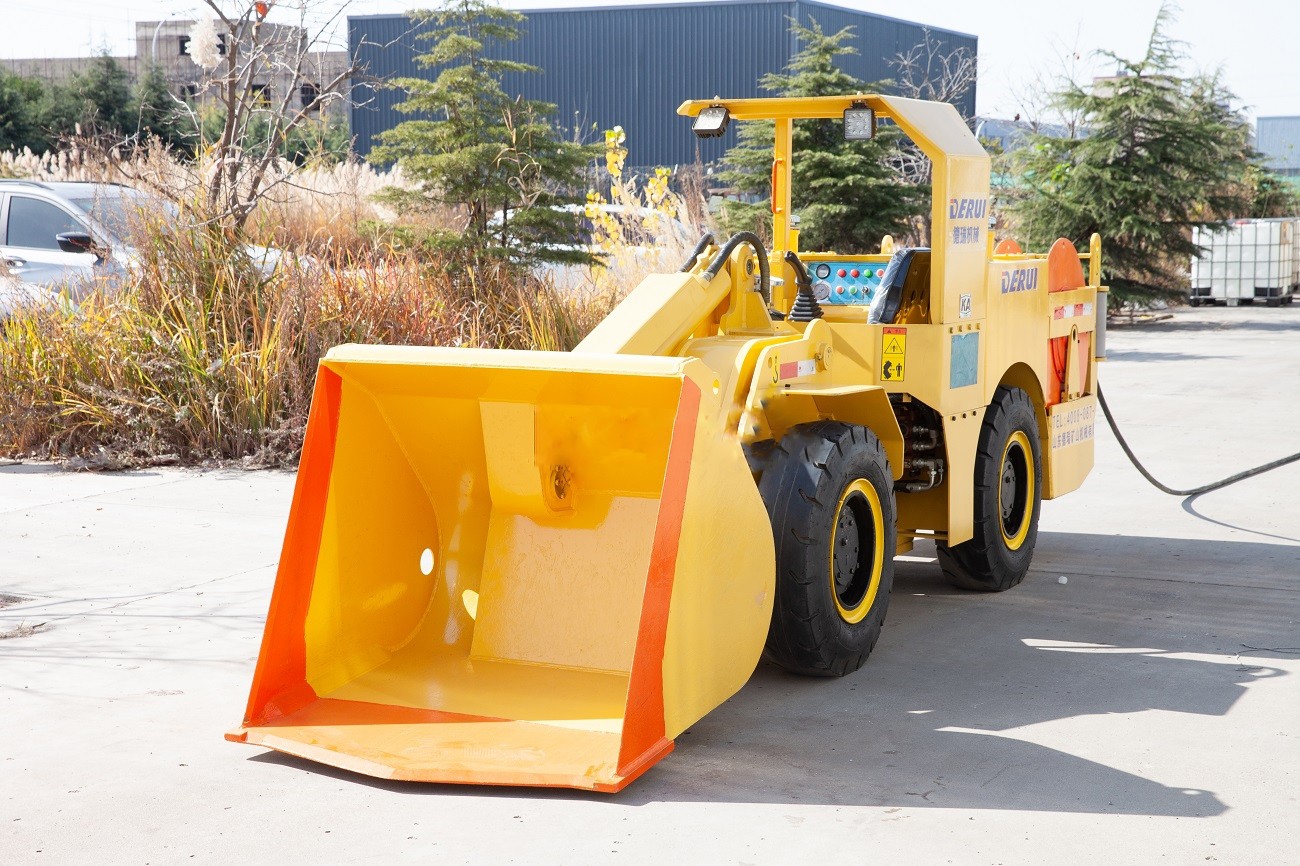

              WJD-0.6 Underground electric scraper

              As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

              1. Detailed information

              Item

                       parameter

              bucket capacity

                         0.6m3

              rated  load

                          1.2t

                   max shovel force

              40KN

                   max traction force

                          38KN

              min unload distance

                          785mm

              max unload height

              1020mm

              climb capacity(full load)

                           16°

              min turning radius

              Outside  3445mm

              inside   1900mm

              Max steering angle(left/right)

                          38°

              departure angle

                          16°

              walking speed(two way)

                          0-7Km/h

              motor model/power

              HM2-2-225S-4/37kw



              braking system



              Work and brake integrated, adopt spring brake. hydraulic realese brake

              Dimension(L*W*H)

               4750*1100*1840mm

              Weight

                  5.1t
