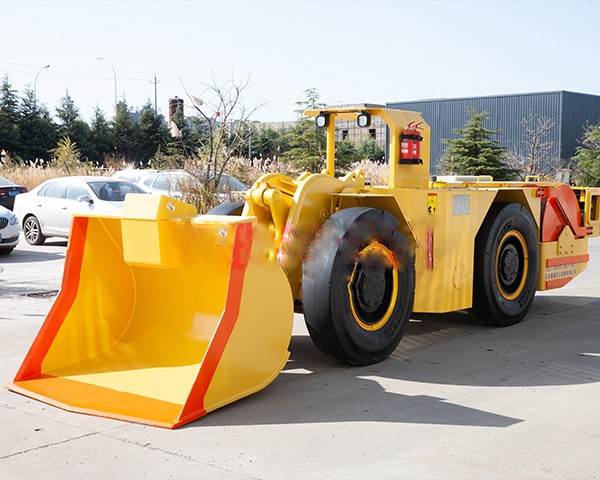

              WJD-1.5 Underground electric scraaper

              As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

              1. Detailed information

              Item

                       parameter

              bucket capacity

                         1.5m3

              rated  load

                          3t

                   max shovel force

              72KN

                   max traction force

                          86KN

              min unload distance

                          1010±50mm

              max unload height

              1410±50mm

              climb capacity(full load)

                           16°

              min turning radius

              Outside  5000mm

              inside   2800mm

              Max steering angle(left/right)

                          ±40°

              departure angle

                          15°

              walking speed(two way)

                          0-9Km/h

              motor model/power

              Y280S-4/75kw



              braking system



              Work and brake integrated, adopt spring brake. hydraulic realese brake

              Dimension(L*W*H)

               68800*1600*2050mm

              Weight

                  11t
