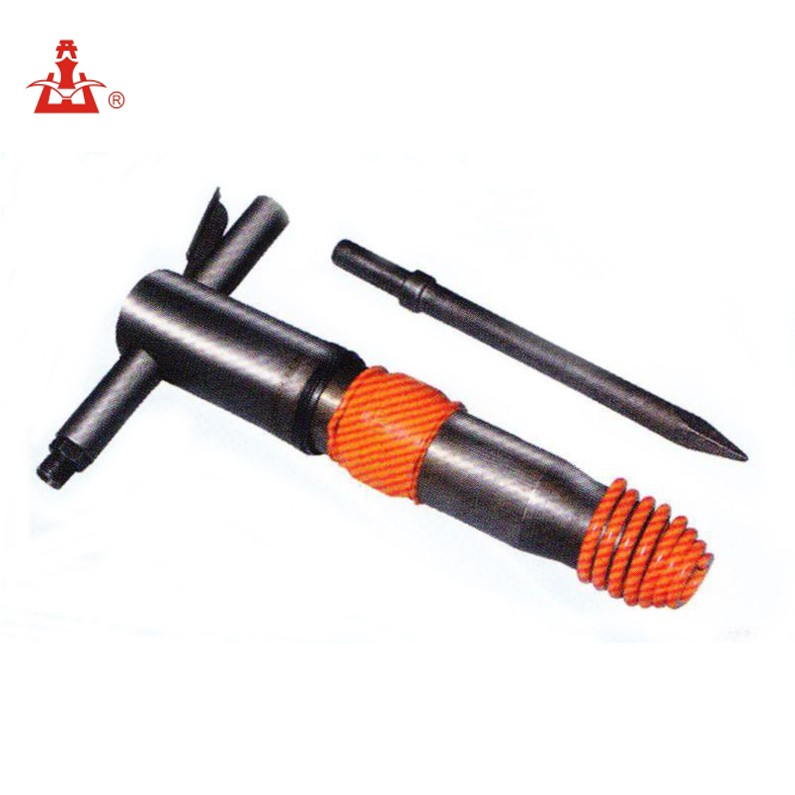

Pick Hammer /Rock Drilling Machine G20 -
Pick Hammer /Rock Drilling Machine G20
OverviewQuick DetailsPlace of Origin:Zhejiang, ChinaBrand Name:KaishanModel Number:G20Type:Air Hammer, Air HammerAverage Air Consumption:55L/SMaximum Torque:None(air Drill)No-Load Speed:000rpmName:Roc
Pneumatic power pick concrete rock breaker tools
Specification of China Famous Brand Kaishan Pneumatic Pick Hammer /Rock Drilling Machine G20
1. Pneumatic pick hammer splitter Appliance
Pneumatic pick is lighter, more flexible and convenient operation. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.
It's widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete, frozen earth in construction and installation engineering or constructing works in casting industries.
2. Pneumatic pick hammer splitter Feature
a:This kind of machine is designed for block secondary splitting or squaring specially,
b:it can be instead of the dynamite blasting or traditional manual splitting device completely.
c:It can be widely used for reinforced concrete breaking or removing, such as the construction
d:building part demolition, bridge dismantling, demolishing underwater etc.
e:One complete machine including a pneumatic hammer and one set of forge plug and feathers
Parameters of China Famous Brand Kaishan Pneumatic Pick Hammer /Rock Drilling Machine G20
| Model | G20 |
| Weight | 20kgs |
| Working Pressure | 0.4-0.63 MPa |
| Max Pressure | 0.49 MPa |
| Air Consumption | ≤ 23 L/S |
| Impact Energy | ≥43J |
| Impact Frequency | ≥16Hz |
More choose
Model | Weight | Air consumption | Impact frequency | Air pressure |
(KG) | (L/S) | (HZ) | (MPA) | |
B77C | 39 | ≤34 | ≥18.3 | 0.63 |
B87C | 39 | ≤44 | ≥16.5 | 0.63 |
B67C | 30 | ≤34 | ≥22 | 0.63 |
B47 | 21.5 | ≤23 | ≥21.6 | 0.63 |
B50 | 18 | 33 | 22 | 0.63 |
B70 | 29 | ≤24 | ≥16.8 | 0.63 |
G10 | 10.9 | ≤20 | ≥16 | 0.4-0.63 |
G15 | 11 | ≤22 | 16 | 0.63 |
G20 | 20 | ≤23 | ≥16 | 0.63 |
. Top techonology and guranty
One year warranty in overseas branch
D&R center ensure top advantages
Asian biggest drilling rig manufacturer with long history
World top-class heat treatment production line imported from Japan
Advanced automatic mloding production line from USA
Advanced NC machine
German TRUMPF flexible sheet metal processing system
